Vgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And Safety

Hangzhou JENTAN Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Vgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And Safety

Brand Name : JENTAN

Model Number : JTVGP 1Ton

Certification : CE;GS;EN;ISI;AU;UL;CUL;TUV

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000000pcs per year

Delivery Time : 7-60 days

Application : Industrial lifting

Usage : Lifting and pulling

Load Chain Diameter : 6-10 mm

Lifting Height : 1.5meters

Capacity : 1 ton

Standard : JB/T 7335-2016

Power Source : Lever Chain

Maximum Lifting Height : 12m

Custom Service : OEM

Lift Speed : no

Operating Temperature : -40℃ to +60℃

Sling Type : Chain fall

Features : Lightweight, compact, durable

Material : Alloy steel

Load Chain Length : 1.5 meters

Contact Now

JTVGP Lever Block

● All-steel construction featuring, rugged gear case and hand wheel, exceptional durability.

● Reinforce double pawl brake system and lager dia. pawl springs ensure reliable brake.

● Unique curling design-This leature enables the hand chain to successlully feed directly into the wheel sprocket from many directions and angles.

● GBO heat treated alloy load chain.

● Forged alloy Steel Hooks-Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety.

● Sealed roller bearings-Greatly improving performance and serve life of the product.

● Certification-Load tested to 150% of capacity with certificate.

Sling type Chain, Wire Rope, small chain hoist
Certification ISO, CE, TUV, SGS, CE&GS
Usage Construction Hoist, Mining Hoist, harbours, mines, Material hand lifting
Condition New
Lift speed Manual, Depends, lever speed, small chain hoist, 8/2m/min
Warranty 1 Year, one year, 2 Years, 3-5years, 15 months
Power source Lever, Hand Chain, Electric
After-sales service provided No overseas service provided, Engineers available to service machinery overseas, Overseas third-party support available, Overseas service center available, Video technical support
Maximum lifting weight 9 ton, 0.25-9T, 0.1-5t, 4.5tons, 30 ton
Maximum lifting height 1.5M, 3m, or as request, 6m, 12M
Color Orange, Customizable, Customised, blue, as your opitions
Capacity 0.5ton, 0.25 ton or custom as your requirements, 500 kg, 2 ton, 0.25-5t
Product name small vital manual ratchet hand power lever chain block hoist, NUCLEON 1.5t electric Chain hoist, Combined Manual Chain Hoist, Hand Chain Lever Hoist, Mini electric chain hoist
Chain G80, G80 lifting chain, 80class
Name Mini PA Type 500kg 6 Ton Block Lever Electric Wire Rope Chain Hoist, Manual chain hoist, 2ton, 3 ton manual chain lever block hoist, Lever Block
Lifting height 3m-50m Customize, 0.5-50, 1.5m 3m or customized, 1.5M, 1.5 m or custom as your requirements
Application tight line for Hand Pulling Lever/block, Lifting Goods, warehouse and workshop etc., factory, clean room environment
Type Liftling Equipment, Chain type lever hoist, electric hoist, Moveable
Test load 0.75-5 t, 1.5, 6250 kgs, Test 125% before delivery
Vgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And Safety

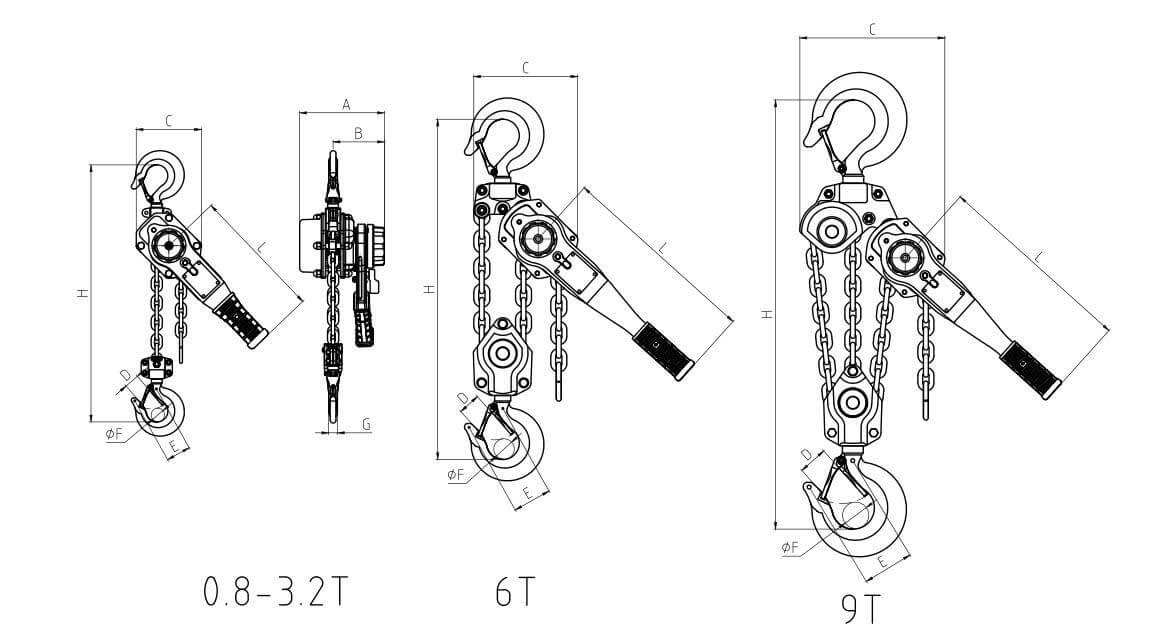

VGP Specifications Sheet
Model W.L.L(t) LIFT(m) Proof Load(t) Lever Force kg(n)(lbs) Load Chain Dimensions(mm) N.W.(kg) Additional Weight Per Lift(kg)
Falls Size H A B C D(c/w latch kits) E F G L kg
VG-P0.8 0.8 1.5 1.2 22(215)(48) 1 5.6x17 300 150 100 119 29 50 26 16 245 5.5 0.7
VG-P1 1 1.5 1.5 30(294)(66) 1 5.6x15.7 300 150 100 119 29 50 26 16 245 5.5 0.7
VG-P1.6 1.6 1.5 2.4 31(304)(68) 1 7.1x20 350 168 104 126 30 52 29 20 265 7.8 1.1
VG-P3.2 3.2 1.5 4.8 38(372)(84) 1 10x28 395 201 118 159 36.5 60 35 25 415 13.4 2.3
VG-P6.3 6.3 1.5 9.5 39(382)(86) 2 10x28 540 201 118 218 40 78 45 34 415 25.8 4.6
VG-P9 9 1.5 13.5 40(392)(88) 3 10x28 680 201 118 298 54 99 56 44 415 38.8 6.9

Vgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And SafetyVgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And Safety

Vgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And SafetyVgp Lever Hoist With Reinforced Double Pawl Brake System For Performance And Safety
